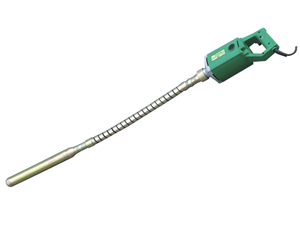

The 800w portable vibrator utilizes a single phase motor. Such a motor can be connected to different power supply voltages via various standard types of plugs. Equipped with the off-centered weight, the motor is able to generate vibration at a relatively high speed, thanks to the planetary gearing. The vibration is transmitted to the poker via the flexible tube.
Advantages
The vibrator motor only weighs 2.2kg. When attached with the 1m-long 3.14kg shaft, the whole assembly has a weight as little as 5.34kg.The lightweight structure allows ease with which the vibrator can be operated.
| Technical Parameters | ||||||
|---|---|---|---|---|---|---|
| Model | ZID-35 | |||||
| Power | 800W | |||||
| Voltage | 220V /110V | |||||
| Vibrating Speed | 5600rpm | |||||
| Weight | 2.5kg | |||||
| Package Size | 45×35×33cm (10pcs) | |||||
| Matched Vibrator Shaft | ||||||
| Model | ZX-25 | ZX-25 | ZX-25 | ZX-35 | ZX-35 | ZX-35 |
| Diameter of Poker | 27mm | 27mm | 27mm | 35mm | 35mm | 35mm |
| Length | 1.0m | 1.5m | 2.0m | 1.0m | 1.5m | 2.0m |
| Weight | 2.35 | 2.93 | 3.51 | 3.14 | 3.92 | 4.7 |
