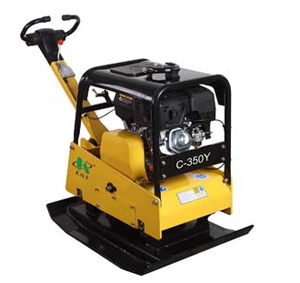

The C-350Y hydraulic plate compactor includes a reversing valve added to the hydraulic system. The valve consists of cylindrical spools that alternately block or open certain hydraulic channels. In this way, the hydraulic system is controlled to start or stop the machine as well as reverse its direction of travel.
The net weight of the compactor falls into the range from 305kg to 330kg. It is able to generate strong vibrating force up to 40KN, enabling a compaction depth of 95cm.
Optional Engine
1.B&S 13.5HP
2.Kohler CH440 14.0HP
| Model | C-350Y-HD | C-350Y-CH |
| Engine | Air-cooled, 4-storke,single cylinder | |
| Engine Type | Honda GX390 | Chinese Diesel 186F /E |
| Power kw(hp) | 9.8(13.0) | 7.4(10.0) |
| Weight kg(lbs) | 305(671) | 330(726) |
| Frequency vpm | 4800 | |
| Centrifugal Force kN | 40 | |
| Compaction Depth cm(in) | 95(37.5) | |
| Travel Speed cm/s(in/s) | 30(11.8) | |
| Efficiency m2 /hr(ft2 /hr) | 480(5166) | |
| Plate Size cm(in) | 90×67(35.5×26) | |
| Package cm(in) | 92×69×125 (36×27×49) | |
