Features

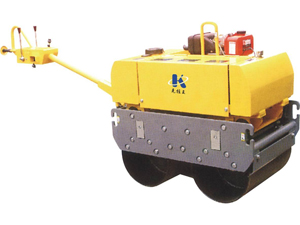

1. The VR-500/VR-650 double drum roller utilizes a hydraulic control unit that consists of imported hydraulic pump from Japan. The system allows smooth transition between reverse and forward travel.
2. The joystick handle saves operating effort.

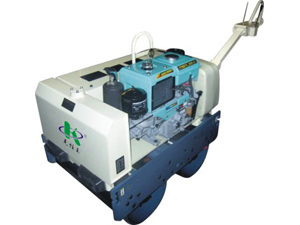

3. Custom made water-cooled diesel engine delivers greater power while dispersing heat more quickly than a gasoline engine. It is ideal for high-temperature applications.
4. Both the drum and roller body are made of steel C45 that gives better tensile strength and longer use life than Q235.
5. The steel structure is cut by laser, avoiding deformation otherwise caused by twisting or bending. Laser cutting also gives higher dimension accuracy than flame cutting.
6. High capacity water tank ensures sufficiency water supply thereby extending roller use life.
| Model | VR-500 | VR-650 | |||
| Configuration | Engine | HONDA GX390 13.0HP / Kipor 186FE 9.0HP | Golden Fish water cooled diesel engine, 4-stroke, single cylinder, 9 HP(6.6KW) | ||
| Hydraulic Pump | TUFF TORQ,Japan.Output:13CC | TUFF TORQ,Japan.Output:13CC | |||
| Hydraulic Motor | EATON/WHITE , USA.Output:125CC | EATON/WHITE , USA.Output:125CC | |||
| Water Tank Volume | 30L | 40L | |||
| Oil Tank Volume | 22L | 25L | |||
| Dimension | Drum Diameter | 350 mm | 360 mm | ||
| Drum Width | 575 mm | 650 mm | |||
| Working Dimension | 235×62×120cm | 260×70×130cm | |||
| Running | Transmission |
Power: hydro-static Exciter: mechanically- or manually-operated clutch |
Power: hydro-static Exciter: mechanically- or manually-operated clutch |
||
| Travel Velocity | 0-4km/h | 0-4km/h | |||
| Climbing Capacity (angle of inclination) | 30° | 30° | |||
| Compaction | Vibration Amplitude | 0.8 mm | 0.7 mm | ||
| Vibration Frequency | 60 HZ | 60 HZ | |||
| Exciting Force | 9 KN | 12 KN | |||
| Compaction Width | 575 mm | 650 mm | |||
| Shipment | Package Dimension | 130×78×210cm | 135×80×210cm | ||
| Shipping Weight | N.W. | 500kg | N.W. | 710kg | |
| G.W. | 530kg | G.W. | 740kg | ||
| MOQ | 1 set | 1 set | |||
| Shipment Quantity | 20' 12 sets | 20' 12 sets | |||
| 40' 24 sets | 40' 24 sets | ||||
 |
 |
| Imported Hydraulic Pump from Japan | Easy-to-Operate Joystick and Safety Device |
