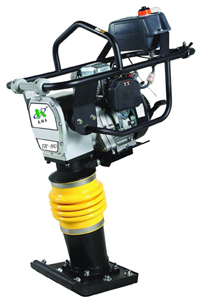

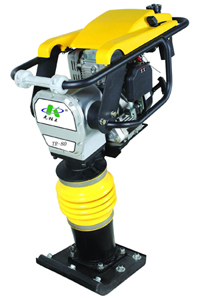

TR-80K Tamping Rammer
> > >

The TR-80K tamping rammer requires limited cleaning and maintenance. This comes with financial benefits, as it saves labor hour and money. It is reliable, long-lasting, and economical.

1. The rammer exerts an average 10KN pounding force into the ground.
2. Easier startup, lower operation noise, and less fuel consumption that a 2-stroke engine.
3. The 4-stroke engine does need require mixing gasoline and oil as energy source. Choices of engines include Honda, Robin, and Chinese engine.
4. Attractive exterior
5. Aluminum housing is lightweight and shockproof.
6. Four springs ensure the pounding force is evenly distributed over the base plate.
7. The high-quality bellow accepts more pounding force and offers splash lubrication that can lower the friction noise of machine parts.
8. Shock-absorbing rubbers are coated on the operating handle to reduce the vibration felt by the operators and improve operating comfort.

Model TR-80K
Engine Model Robin EH12-2D Honda GX160 Honda GX120 Loncin LC168-2H Diesel Engine 170F
Engine Power KW(HP) 3.0 (4.0) 4.0 (5.5) 2.2(3.0) 4.8(6.5) 3.2(4.2)
Weight kg(lbs) 72(158) 77(169) 70(154) 77(169) 88(193)
Max. Jumping Stroke 6.5cm (2.6in)
Max. Pounding Force 10.0 KN
Number of Pounding Actions per Minute 450 ~ 650 times/min
Plate Size 34.5×28.5 cm (13.6×11.2in)
Package Size 570×510×1040mm

Related Names
Vibratory Tamper | Paver Flattening Device | Soil Compacting Tool
