C-60 10.5KN Forward Plate Compactor
> > >

The C-60 10.5KN forward plate compactor gives project contractors high productivity and flexibility they need. It requires limited maintenance. This comes with financial benefits, since it takes little time and money to get repaired.

As a preferred method for compaction of sand, gravel, and mixed soil in narrow trenches as well as along concrete sub-base, walls, and abutments, the plate compactor can expedite compaction process by providing fast vibration speed unrivaled by even some heavy-duty compactors. Specially intended for tamping solid soil, this equipment turns corners easily with small turning radius. Its lightweight structure is easy to operate and transport.

Optional Attachments
1. Foldable handle
2. Trolley wheel

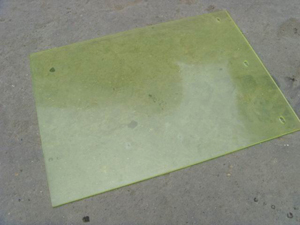

3. Rubber mat
4. Cast iron or aluminum vibratory unit

Specifications
Model C-60HD C-60RB C-60SB C-60BS C-60LF
EngineType Air-cooled, 4-stroke, single-cylinder
Model Honda GX160 Robin EY20 Subaru EX17 Briggs & Stratton 1062 Lifan 168F
Engine Power 5.5HP 5.0HP 5.5HP 5.0HP 5.5HP
Frequency 5800
Centrifugal Force 10.5KN
Working speed 20 m/min (16 in/s)
Plate Size 530×350 mm
Net Weight/Gross Weight 69kg/ 77kg
Package Size 790×480×720mm
