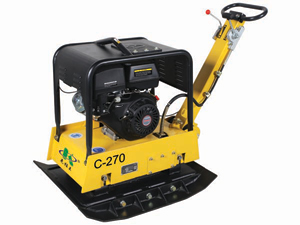

The C-270 34KN reversible plate compactor weighs about 250kg to 270kg. It is able to generate a compaction force of 34KN. Its maximum compaction depth is 90cm.
| Model | C-270HD | C-270CH | C-270D | C-270KH | C-270BS |
| Engine | Air-cooled, 4-storke,single cylinder | ||||
| Engine Type | Honda GX390 | Chinese Petrol Engine | Chinese Diesel 186F | Kohler CH440 | Briggs & Stratton |
| Power kw(hp) | 9.5(13.0) | 9.5(13.0) | 6.6(9.0) | 10 (14) | 9.9(13.5) |
| Weight kg(lbs) | 250(550) | 250(550) | 270(602) | 258(568) | 244(537) |
| Frequency vpm | 3750 | ||||
| Centrifugal Force KN | 34 | ||||
| Compaction Depth cm(in) | 90(34) | ||||
| Travel Speed cm/s(in/s) | 35(14) | ||||
| Efficiency m2 /hr(fr2 /hr) | 650(6950) | ||||
| Plate Size cm(in) | 82×48(31×18)/Extension plate:82×8.5(31×3.3) | ||||
| Package cm(in) | 91×50.5×114 | ||||
