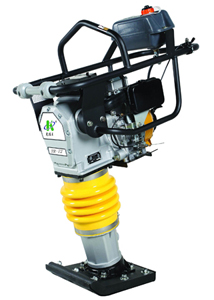

TR-72K Tamping Rammer
> > >

The TR-72K tamping rammer requires limited maintenance. It is rugged, dependable, and economical.

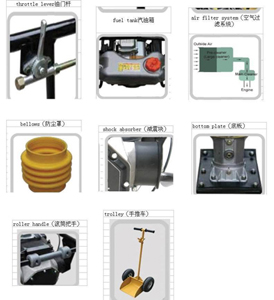

1. Double air cleaner system provides clean, dirt-free air to the engine. The use of this system is essentially to extend engine use life and durability. The system consists of an original air cleaner to which the air filtration system is added.

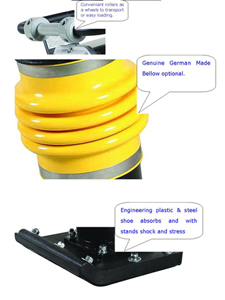

2. Heavy-duty shock-absorbing rubber kickback
3. High-density polyethylene fuel tank eliminates corrosion.
4. Rack and pinion type throttle lever.
5. Engineering plastics and steel well absorb shock and stress.
7. High quality, German made polyurethane bellow.

Technical Specification
Model TR-72K
Engine Model Robin EH12-2D Honda GX160 Honda GX100 Loncin LC168-2H Diesel Engine 170F
Engine Power KW(HP) 3.0 (4.0) 4.0 (5.5) 2.2(3.0) 4.8(6.5) 3.2(4.2)
Weight kg(lbs) 74 (163) 82(180) 70(154) 79(173) 90(198)
Max. Jumping Stroke 8.5cm (3.4in)
Max. Pounding Force 13.7 KN
Pounding Frequency 640 ~ 680 times/min
Plate Size 34.5×28.5 cm (13.6×11.2in)
Package Size 570×510×1040mm

Related Names
Jumping Jack Tamper | Light Construction Machine | Hand Tamper
