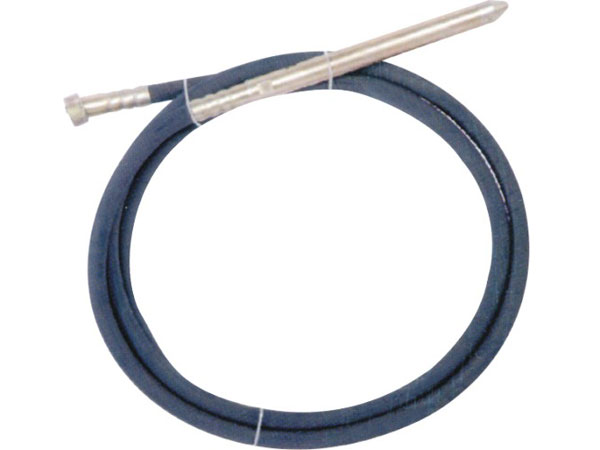

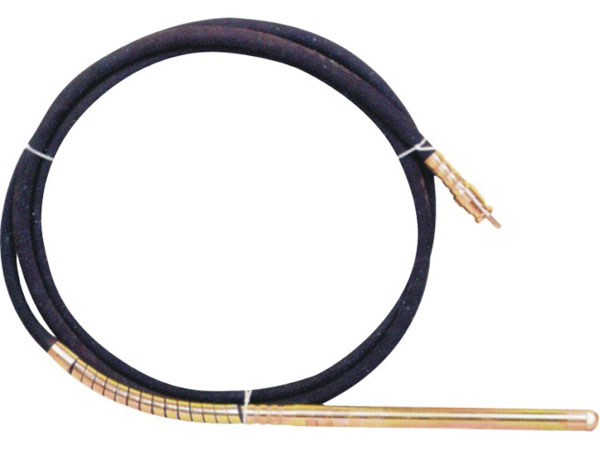

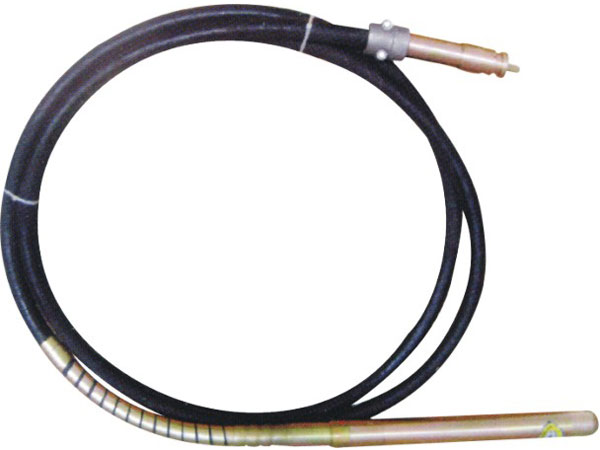

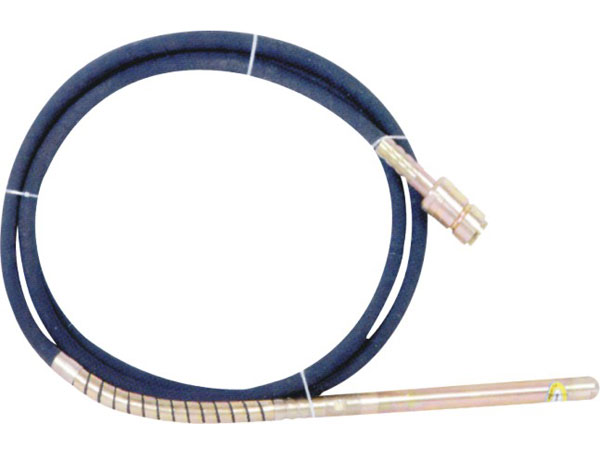

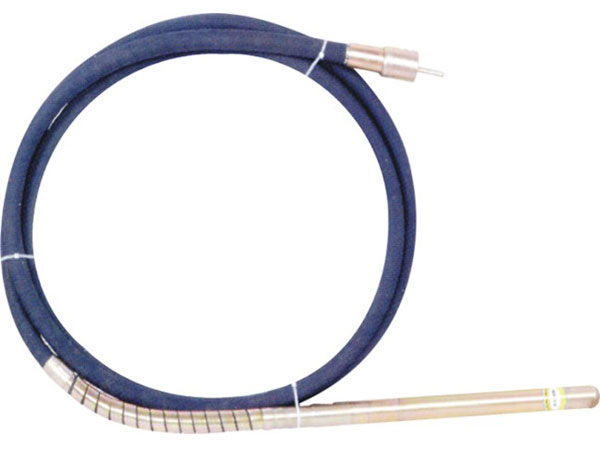

Concrete Vibrator Needle -
Chinese Round type -
korea type -
Dynapac type -
Turkey Type
The concrete vibrator needle is also known as vibrating poker. It is available in various diameters, including 25mm, 28mm, 32mm, 35mm, 38mm, 45mm, 50mm, 60mm, 70mm, and 75mm. It also can be attached to flexible tubes of various lengths, varying from 1m to 12m. To be compatible with specific job requirements, the vibrator needle may take different forms. Usually driven by the electric vibrator, the poker also can be used in combination with gasoline vibrator or diesel vibrator.
Applications
Suitable for common concrete tamping jobs, our vibrator needle has found widespread applications in bridge, harbor, large dam, and high-rise construction projects, where it is used to tighten the poured concrete foundations or walls.
Advantages
The vibrating poker eliminates air pockets in the concrete, thus increasing concrete density. It also prevents the occurring of cracks on the concrete surface, thereby improving the quality of whole concrete construction. Further benefits of a vibrating poker includes stable functioning, outstanding mechanical performance, and low noise.
| Model | International Standard Type | |||||
| ZX-28 | ZX-32 | ZX-38 | ZX-45 | ZX-60 | ||
| Poker Diameter | (mm) | 28 | 32 | 38 | 45 | 60 |
| Poker Diameter | (mm) | 580 | 583 | 580 | 583 | 577 |
| Vibrating Frequency | (Hz) | 220 | 220 | 200 | 200 | 200 |
| Amplitude of Vibration | (mm) | 0.8 | 0.82 | 1.2 | 1.2 | 1.25 |
| Diameter of Flexible Hose | D(mm) | 30 | 30 | 30 | 32 | 36 |
| Diameter of Flexible Shaft | D(mm) | 10 | 10 | 10 | 12 | 13 |
| Gross Weight (with 6mtr) | (kg) | 12 | 13 | 14.5 | 16.5 | 22 |
| Package Size | cm | 75×75×5.5cm | ||||
| Picture |
 |
|||||
| Model | Simple Type | |||||||
| ZX-32 | ZX-38 | ZX-45 | ZX-60 | ZX-35 | ZX-50 | ZX-70 | ||
| Diameter | (mm) | 32 | 38 | 45 | 60 | 35 | 50 | 70 |
| Length | (mm) | 583 | 580 | 583 | 577 | 400 | 479 | 555 |
| Vibrating Frequency | (HZ) | 220 | 200 | 200 | 200 | 200 | 200 | 200 |
| Vibration Amplitude | (mm) | 0.82 | 1.2 | 1.2 | 1.25 | 0.91 | 1.15 | 1.35 |
| Diameter of Flexible Hose | (mm) | 30 | 30 | 32 | 36 | 30 | 36 | 36 |
| Diameter of Flexible Shaft | (mm) | 10 | 10 | 12 | 13 | 10 | 13 | 13 |
| Weight with 6m-Long Hose | (kg) | 12.42 | 12.65 | 15.92 | 22 | 14 | 20.5 | 24 |
| Package Size | cm | 75×75×5.5 cm | ||||||
Note
1. For our concrete vibrator shaft, we can guarantee the operation time of 200 hours.
2. Within the guaranteed operation time, we can replace the defective parts excluding the wearing parts free of charge on the condition that the users comply with the rules of transportation, storage and usage, if the vibrator is broken or can not work well.
3. The company makes no commitment to warranty the product that has been misused or improperly maintained.
4. Contact us online if you need any technical support.
