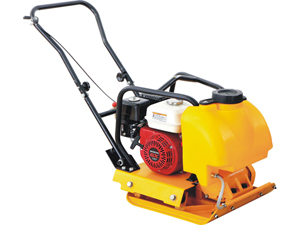

C-80T/C-100T 13KN/20KN Forward Plate Compactor
> > >

The C-80T/C-100T forward plate compactor gives both high flexibility and outstanding performance that are desired by construction workers. Despite its compact design, the compactor allows for short but forceful vibrations. It is well-suited for use in civil engineering, road construction, and gardening industries, where it is employed to tamp sand, gravel, grit, and other granular materials. For special applications like brick pavement compaction, the tamping equipment is specially attached with the rubber mat. When fitted with water or sprinkler assembly, the compactor can be utilized to consolidate asphalt slab.

Optional Attachments
1. Foldable handle for easy transportation and stock
2. Trolley wheel provides ease with which the plate compactor can be transported.

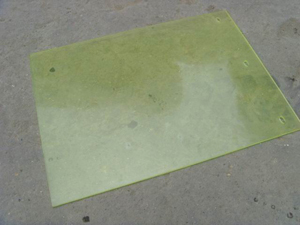

3. Rubber mat
4. Cast iron plate or 65MN heavy steel plate
5. Cast iron vibratory unit or aluminum vibratory unit

Optional Engine
1. B&S 5.0HP/6.5HP
2. Kohler CH260 6.0HP
3. Subaru EX17 6.0HP

Model C-80 C-100
Engine Honda Petrol Engine GX160 Chinese Petrol Engine 168F Robin EY20 Honda Petrol Engine GX160 Chinese Petrol Engine 168F
Engine 5.5HP 5.5HP 5.0HP 5.5HP 5.5HP
Type of Combustion Air-cooled, single cylinder, 4-stroke Air-cooled, single cylinder, 4-stroke
Centrifugal Force 13.0KN 20.0KN
Compaction Depth 30cm 40cm
Size of Base Plate L 500 × W 480mm L 620 × W 480mm
Vibrating Frequency 5500 vpm 5500 vpm
Travel Speed 40 cm/m 40 cm/m
Efficiency 620m2/hr 660m2/hr
G.W./N.W. 90kg /80kg 110 kg /100kg
Package Size 830×520×790mm 850×520×790mm

Related Names
Vibratory Rammer | Ground Compaction Equipment | Soil Tamper
