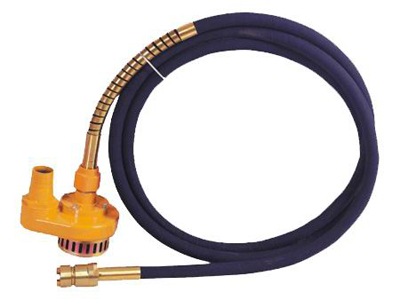

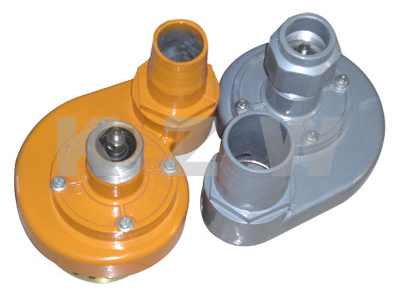

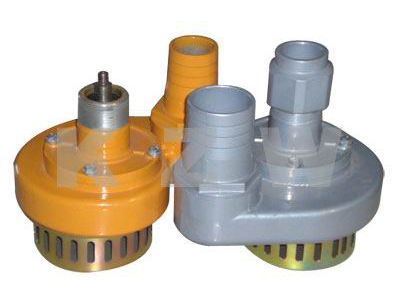

The flexible hose pump is a small, portable centrifugal pump. It is widely used for pumping and draining water on construction sites, such as in tunnels, culverts, and water reservoir. Other uses of the pump are in the waste water management industry and agricultural irrigation.
The pump operates via many energy sources, such as gasoline and diesel. It is fitted with professional, premium engines from world-renowned manufacturers including Robin and Honda. The product is easy to operate, providing large flow capacity and high pump lift.
Specifications| Model | Discharge Outlet Diameter (mm) | Maximum Pump Lift | Flow (m3/h) | Hose Length (m) | Package Size (4pcs) |
| (m) | |||||
| RB80 | 76 | 12 | 40 | 4 ~ 6m | 57×45×27 cm |
| RB50 | 50 | 10 | 30 | 4 ~ 6m | 57×45×27 cm |
| Matched Flexible Hose | |||||
| Model | Hose Diameter (mm) | Shaft Diameter (mm) | Hose Length (m) | Weight | Packing size (1pc) cm |
| ZX-36/4 | 36 | 13 | 4 | 12.6kg | 75×75×7 |
| ZX-36/5 | 36 | 13 | 5 | 14.7kg | 75×75×7 |
| ZX-36/6 | 36 | 13 | 6 | 16.8kg | 75×75×7 |
| Item | Gasoline engine vibrator | ||
| Model | HONDA GX160 | ROBIN EY20 | |
| Engine | 4-stroke, 25°, single-cylinder, air-cooled | ||
| Bore x stroke | 68×45mm | ||
| Displacement | 163 cm3 | ||
| Compression Ratio | 3.6L | ||
| Max Power | 5.5hp/3600rpm | 5.0hp/3600rpm | |
| Recommended Power | 4.8hp/3600rpm | 3.5hp/3600rpm | |
| Fuel Tank Capacity | 3.6L | 3.8L | |
| Fuel Consumption | 230g/hp-hr (313g/kwh) | 230g/hp-hr (313g/kwh) | |
| Package Size | 53×39×43cm | 53×39×43cm | |
| N..W/G.W. | 20kg/22kg | 20kg/22kg | |
