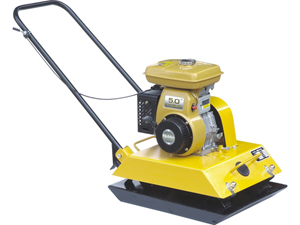

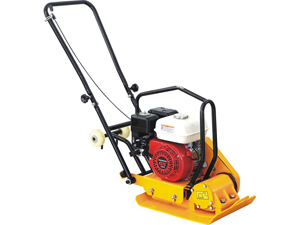

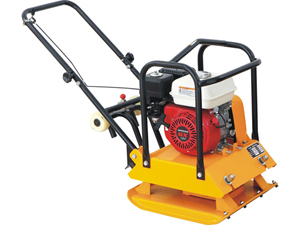

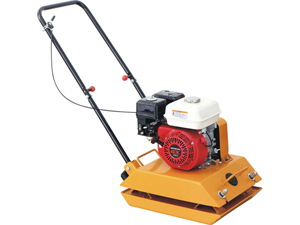

The use of 13.5KN forward plate compactor is essentially to reduce the risk of disintegrated soil structure. It makes the soil particles evenly distributed within the space of a compacted layer. Among an assortment of models in the same series, C-77, C-90, and C-120 are box-shaped compactors that feature simple designs. They also give better compaction effect than other models in this series.
Optional Attachments
1. Foldable handle
2. Trolley wheel
3. Rubber mat
4. Cast iron or aluminum vibratory unit
| Model | C-77HD | C-77RB | C-77SB | C-77BS | C-77LF |
| Engine Type | Air-cooled, 4-cycle,single cylinder | ||||
| Model | Honda GX160 | Robin EY20 | Subaru EX17 | Briggs & Stratton 1062 | Lifan 168F |
| Engine Power | 5.5HP | 5.0HP | 5.5HP | 5.0HP | 5.5HP |
| Frequency | 5800 | ||||
| Centrifugal Force | 13.5KN | ||||
| Working Speed | 20 m/min (16 in/s) | ||||
| Plate Size | 560×430 mm | ||||
| Net Weight/Gross Weight | 77kg/ 85kg | ||||
| Packing Size | 620×490×700mm | ||||
| Products Specification | |||||
| Model | C-90HD | C-90RB | C-90SB | C-90BS | C-90LF |
| Engine Type | Air-cooled, 4-cycle,single cylinder | ||||
| Model | Honda GX160 | Robin EY20 | Subaru EX17 | Briggs & Stratton 1062 | Lifan 168F |
| Engine Power | 5.5HP | 5.0HP | 5.5HP | 5.0HP | 5.5HP |
| Frequency | 5800 | ||||
| Centrifugal Force | 15.0KN | ||||
| Working Speed | 20 m/min (16 in/s) | ||||
| Plate Size | 600×470 mm | ||||
| Net Weight/Gross Weight | 89kg/ 98kg | ||||
| Packing size | 690×530×700mm | ||||
| Model | C-120HD | C-120RB | C-120SB | C-120BS | C-120LF |
| Engine Type | Air-cooled, 4-cycle,single cylinder | ||||
| Model | Honda GX160 | Robin EY20 | Subaru EX17 | Briggs & Stratton 1062 | Lifan 168F |
| Engine Power | 5.5HP | 5.0HP | 5.5HP | 5.0HP | 5.5HP |
| Frequency | 5800 | ||||
| Centrifugal Force | 20.0KN | ||||
| Working Speed | 20 m/min (16 in/s) | ||||
| Plate Size | 660×510 mm | ||||
| Net Weight/Gross Weight | 110kg/ 125kg | ||||
| Packing Size | 720×560×710mm | ||||
