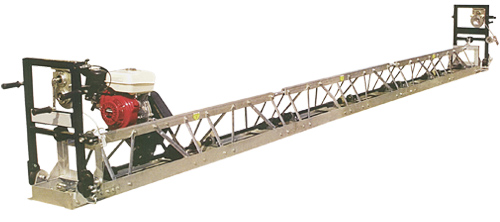

The surface finishing screed is easy to operate and requires limited maintenance. Powered by a petrol engine, the machine allows for uniform vibration over the entire blade length. It gives outstanding compaction performance by enhancing the concrete strength 4 times more than is practical with traditional method.
Features
1. The blade is made of hardened aluminum. It is able to create smoother finishing effect than is possible with conventional screed.
2. The use of heavy rubber on the operating lever is to absorb vibration felt by the user. The lever is adjustable in height. It can be vertically erected or pulled down to a horizontal position.
3. The ends of the bladed is rounded to make it easy to go around obstacles.
4. The tilt-up stand keeps the engine off the concrete slab or touching the ground when unused.
5. On piece casting body is easy to be attached to the engine.
6. It is easy to change blades.
7. Emergency stop switch is available.
| Model | KCD-2 | KCD-4 |
| Engine | Air-cooled, 2-stroke | Air-cooled, 4-stroke |
| Engine Type | Chinese Petrol engine | Petrol Honda GX35 |
| Power kw(hp) | 0.9(1.2) | 1.1(1.5) |
| Weight kg(lbs) | 12.7(28.0) | 12.7(28.0) |
Note
The total weight of the machine should take the weight of engine assembly as well as blades into calculation.
| Blade Model | CB4 | CB6 | CB8 | CB10 | CB12 | CB14 | CB16 |
| Blade Size (m) | 1.22 | 1.8 | 2.44 | 3 | 3.66 | 4.47 | 4.88 |
| Blade Size ( ft ) | 4 | 6 | 8 | 10 | 12 | 14 | 16 |
| Weight (kg) | 2.9 | 4.36 | 5.81 | 7.27 | 8.72 | 10.16 | 11.61 |
Advantages
Using the screed to perform surface finishing work comes with financial benefits. It saves you labor and money.
| Method | Conventional | Screed |
| Labour Required | 4 men | 1 man |
| Screeding per Man | 500m2 | 2000 m2 |
| Time Required | 10 hours | 7hours |
As indicated in the above table, using our screed can save you 75% of money spent in hiring workers. Compared with other similar screeds sold on the market, our surface finishing screed costs 50% less.
