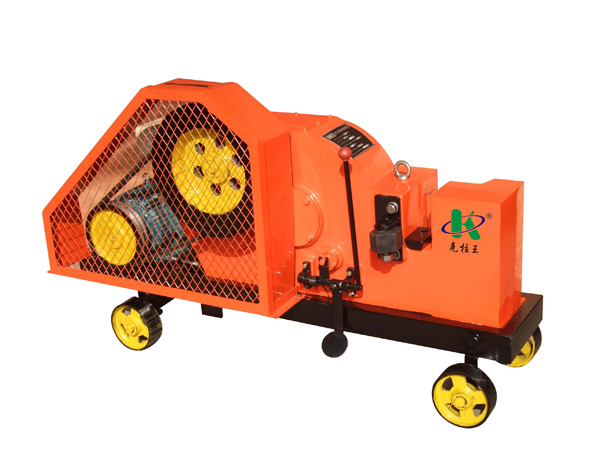

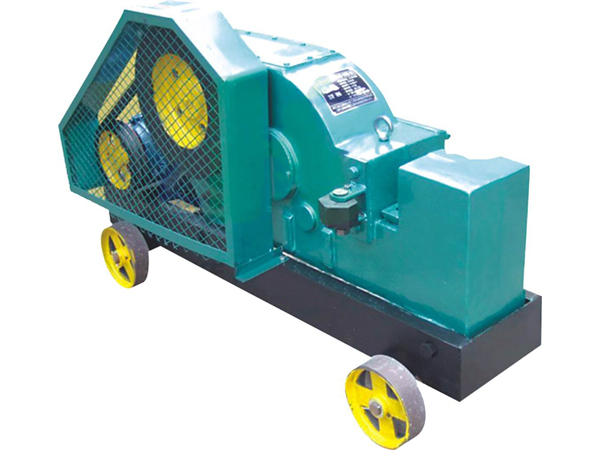

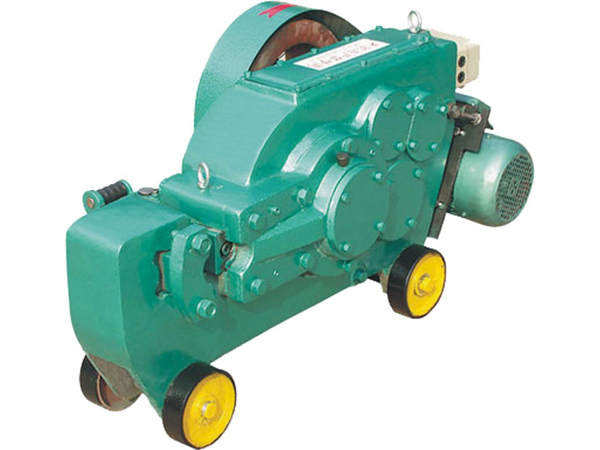

GQ40-50-60

GQ40-50-60

Components
1. Motor Model (GQ50): Y112M-2 4kw
2. Motor Model (GQ40): Y100L-2 3kw
3. Gear: cast steel
Note: Machine parts listed above are given one year warranty.
4. Central Gear: cast steel
5. Crankshaft: cast steel
6. Shaft 1, Shaft 2, Shaft 3: C45 steel
7. Connection Rod: cast steel
Note: The items listed between the first and second note are provided with six months warranty.

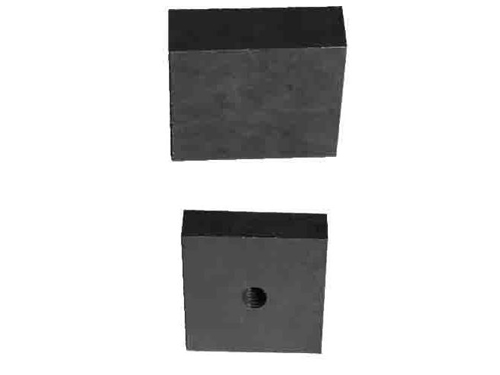

8. Blade: cast steel
9. Motor Enclosure: ductile iron

All the main components have undergone the required heat treatment, quenching, tempering or high frequency heating.

Model	GQ40 (with clutch)	GQ50 (with clutch)	GQ60 (with clutch)
Cut Rebar Diameter ( Plain Carbon Steel)	Ф 6-40mm	Ф 6-50mm	Ф 6-60mm
Grade II Threaded Rebar Diameter	Ф 6-32mm	Ф 6-42mm	Ф 6-50mm
Flat Steel Max. Diameter	70×15mm	80×18mm	90x28mm
Cut Square Steel Max. Specification( Q235A)	32×32mm	40×40mm	50×50mm
Angle Steel Max. Specifications	50×50mm	63x63mm	73×73mm
Cutting Speed	32t/min	28t/min	28t/min
Motor Model	Y100L-2 3KW	Y112M-2 4KW	Y112M-2 5.5KW
Voltage / Speed	380V 2800rpm	380V 2800rpm	380V 2800rpm
Dimension	1190×450×680(mm)	1280×480×720mm	1380×580×820mm
Net Weight	360kg	560kg	890kg
Gross Weight	415kg	585kg	920kg
Packing Size	1270×490×820mm	1470×560×1010mm	1570x700x1110mm

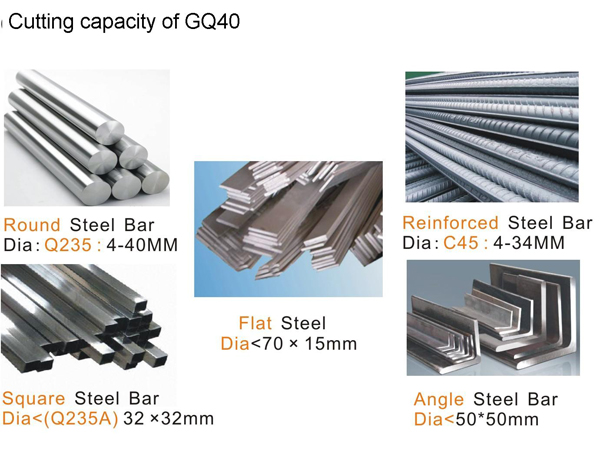

I .Cutting Ability

Steel	Picture	GQ40	GQ50
(Round Steel) R.45kg/mm² 450N/ mm²		Φ6--40mm	Φ6--50 mm
Grade II Deformed Steel Bars		Φ32 mm	Φ36 mm
Flat Steel		Φ70×15mm	Φ80×15mm
Square Steel		(Q235A) Φ 32×32mm	(Q235A) Φ 36×36mm
Channel Steel		50×50mm	63×63mm

II. Cutting Recommendations

Steel Bar Diameter (mm)	4~8	10~13	14~18	19~22	More than 22
Number of Steel Bars at Each Time of Cutting	6	5	3	2	1
GQ40	6	5	3	2	1
GQ50	8	5	4	3	2
