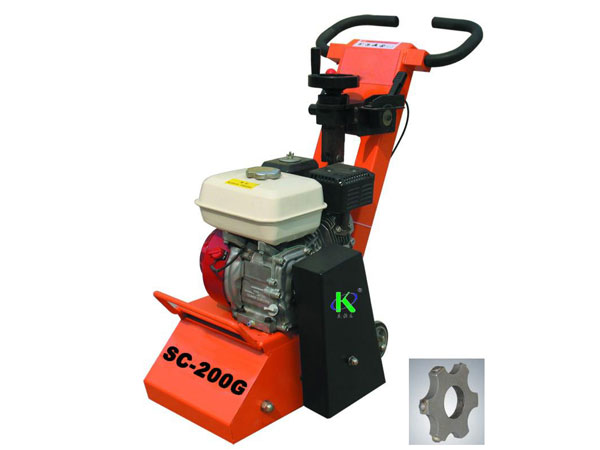

  • SC-200G

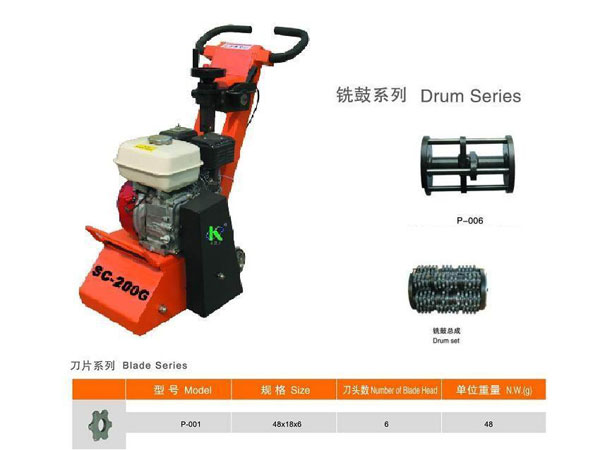

  • SC-200G-1

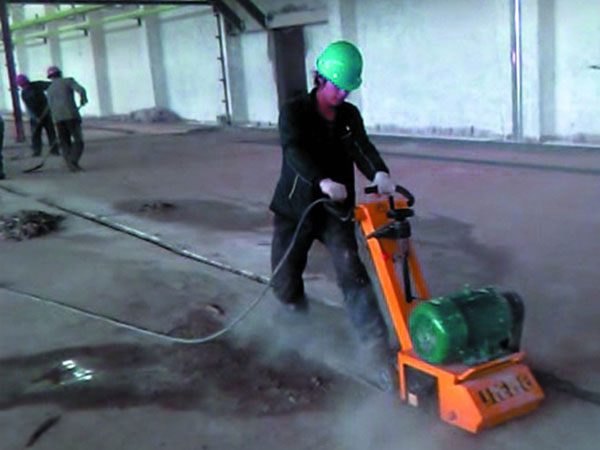

  • SC-200G Working
  • SC-200G Blade

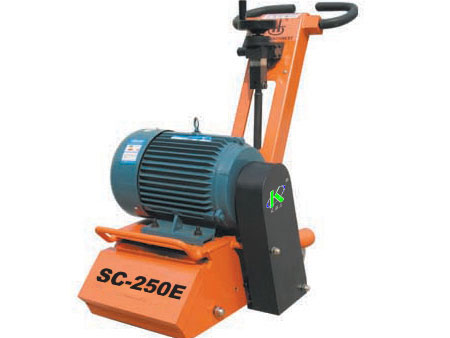

  • SC-250E

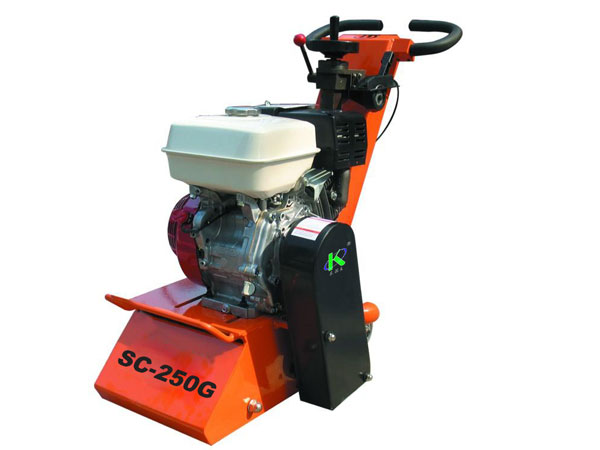

  • SC-250G

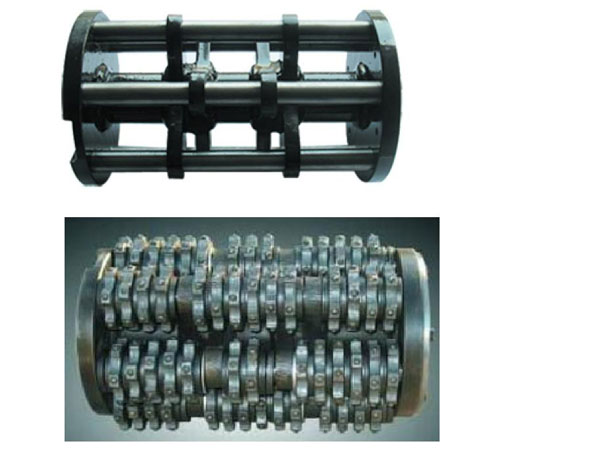

  • SC-250 Drum
  • SC-250 Blade

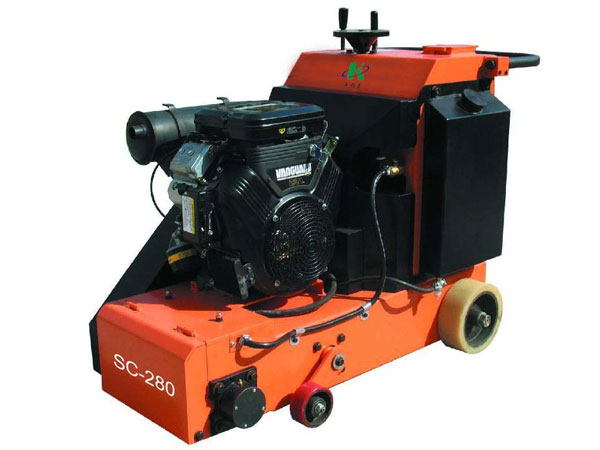

  • SC-280

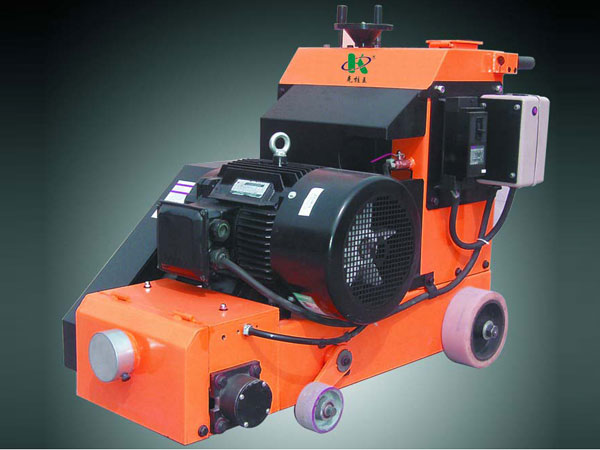

  • SC-280E

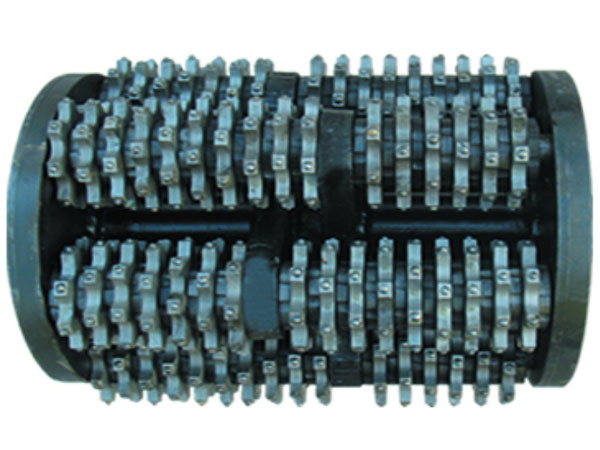

  • Drum with Bland SC-280

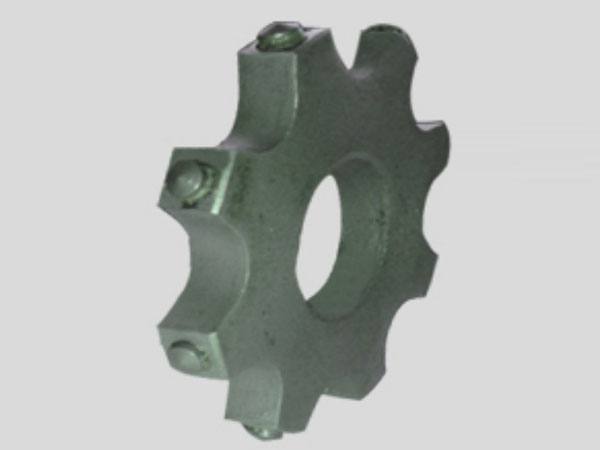

  • Bland of SC-280
Concrete Floor Scarifier

The concrete floor scarifier is commonly used in scarifying, roughening, planing, leveling, and smoothing processes. It also can be used to cut grooves into the concrete slab, remove paint or coatings and clear the surface for re-coating, laying floor coverings, and sand casting.

Features
1. The cutters of concrete floor scarifier are fitted to a number of shafts. User can switch or replace cutters easily in a couple of minutes. The cutter assembly is used for multiple purposes such as cleaning, milling, planing, and roughening.
2. Adjustable operating lever gives ease of operation.
3. The control system is provided with self-locking function. Cutting depths are adjustable.

Spare Parts Warranty
1. The blade of the concrete floor scarifier is given a three-month or an alternative 10000m2 warranty.
2. The quality of cutter shaft is guaranteed for one year, while the drum on which the shaft is mounted is given the same period of warranty.

Specifications
Model SC-200G SC-200E SC-200D
Engine HONDA 5.5 Siemens 4KW Motor 178F 6.0HP Diesel Engine
Milling Width (mm) 200mm 200mm 200mm
Drum Set Blade-interchangeable Blade-interchangeable Blade-interchangeable
Blade Size 48×18×6mm 48×18×6mm 48×18×6mm
Number of Blade heads 6pcs 6pcs 6pcs
Number of the blade Shafts 4~6pcs 4~6pcs 4~6pcs
Removable Milling Drum Declinate Declinate Declinate
Cutting Depth Adjustable Adjustable Adjustable
Max. Milling Depth(mm) 3mm 3mm 3mm
Working Efficiency(22/hr) 33-46 33-46 33-46
Overall Dimension (L×W×H)mm 820×490×810 820×490×810 820×490×810
Package Size (L×W×H)mm 900×570×910 900×570×910 900×570×910
Operating Weight (kg) 105 116 119
Shipping Weight (kg) 110 121 125

Specifications
Model SC-250G SC-250KL SC-250E SC-250D
Engine Petrol Honda GX390 13HP Kohler CH13 13HP Siemens 5.5KW Motor Diesel engine 186F 9.0HP
Milling Width (mm) 250mm 250mm 250mm 250mm
Milling Drum Assembly Blade-interchangeable Blade-interchangeable Blade-interchangeable Blade-interchangeable
Blade Size 56×21×8mm 56×21×8mm 56×21×8mm 56×21×8mm
Number of Blade Heads 6pcs 6pcs 6pcs 6pcs
Number of the Cutter Shafts 6pcs 6pcs 6pcs 6pcs
Removable Milling Drum Declinate Declinate Declinate Declinate
Cutting Depth Adjustable
Max. Milling Depth 5~8mm
Working Efficiency 46-70 m2/hr
Overall Dimension 910×470×880mm
Package Size 990×550×980mm
Operating Weight 178kg 178kg 201kg 199kg
Shipping Weight 192kg 192kg 211kg 209kg

Specifications
Model SC280G SC-280E
Engine American B&S 21HP Siemens 11KW Motor
Milling Width (mm) 280mm 280mm
Milling Drum Assembly Blade-interchangeable Blade-interchangeable
Number of the Cutter Shafts 6pcs 6pcs
Blade Size 80×30×8mm 80×30×8mm
Milling Mode Inclination Inclination
Cutting Depth Adjustable
Max. Milling Depth 8~15mm
Working Efficiency 70-150 m2/hr
Overall Dimension 1300×640×930mm
Package Size 1380×720×1010mm
Operating Weight 286kg 339kg
Shipping Weight 301kgs 355kgs


Related Names
Concrete Surface Grinder | Road Scarifying Machine | Walk Behind Scarifier
