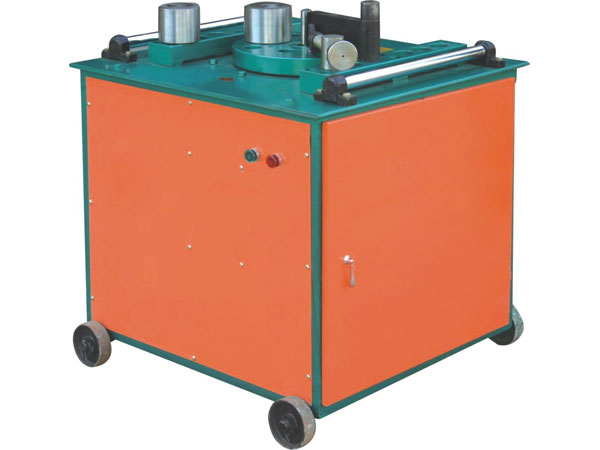

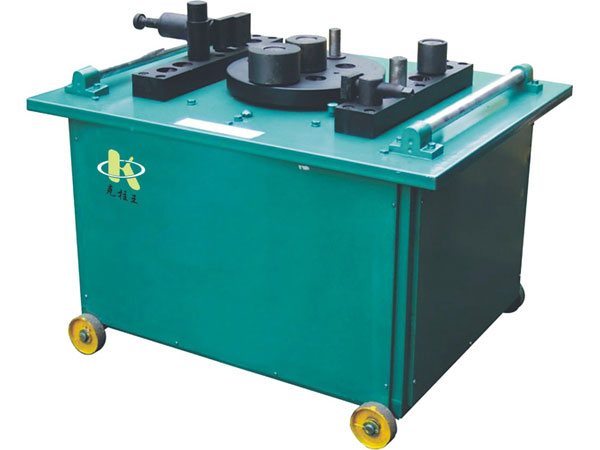

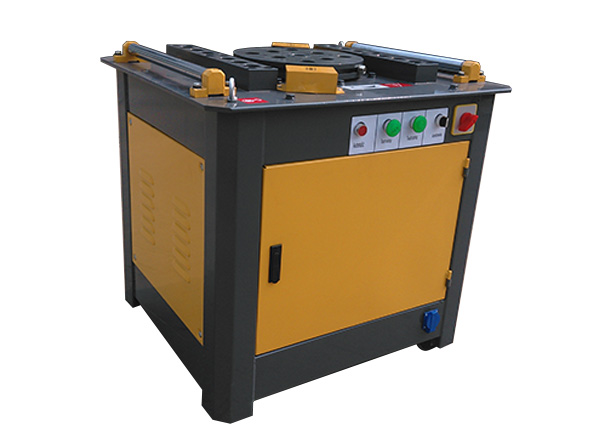

This series of steel bar bender is manually operated. With simplified structure, the machine causes bars with diameters varying from 3mm to 42mm to be bent into various shapes. It is a useful tool on construction sites, such as bridge and tunnel building.
Technical Data| Item | Manual Type Rebar Bender | |
| Model | GW40 | GW50 |
| Allowable Diameter for Round Bar | 6-40mm | 6-50mm |
| Allowable Diameter for Grade II Threaded Steel | 6-32mm | 6-42mm |
| Worktable Diameter | 320mm | 420mm |
| Main Shaft Speed | 8-15r/min | 8-15r/min |
| Motor | 3KW/380V | 4KW/380V |
| Motor Speed | 1440t/min | 1440t/min |
| Dimension | 750×700×710mm | 1060×850×730mm |
| Net weight/Gross weight | 240kg/260kg | 380kg/400kg |
| Package Size | 790×790×880mm | 1100×860×860mm |
| Number of Rebars to be Bent at A TimeMaximum Diameter of Rebar (mm) | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | ||
| Single Bending | GW40 | ≤ 450N/mm2 | 38 | 30 | 25 | 20 | 16 | 12 | 10 | 8 |
| GW50 | ≤ 450N/mm2 | 42 | 34 | 28 | 22 | 18 | 14 | 10 | 8 | |
| Double Bending | GW40 | ≤ 450N/mm2 | 30 | 18 | 16 | 14 | 10 | 8 | 6 | 4 |
| GW50 | ≤ 450N/mm2 | 32 | 25 | 20 | 16 | 14 | 10 | 8 | 6 | |
