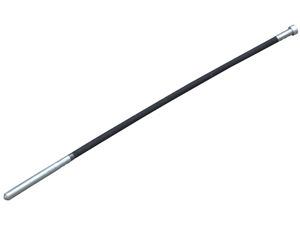

The 1300W portable concrete vibrator falls into the ZID-35-1 series of vibrators. It is attached with a vibrating poker inside which is installed an eccentric vibrating element. The vibrator motor spins 12000 times per minute, which allows it to generate vibration at the same high frequency. The poker is immersed into the concrete, easily causing it to resonate with the poker. The vibrator weighs as little as 6.5kg, giving ease of operation.
| Technical Parameters | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | ZID-35-1 | |||||||
| Power | 1300W | |||||||
| Voltage | 220V /110V | |||||||
| Vibrating Speed | 12000rpm | |||||||
| Weight | 3.4kg | |||||||
| Packing Size | 58×38×41cm /10pcs | |||||||
| Matched Hand-Held Shaft | ||||||||
| Model | ZX-35 | ZX-35 | ZX-35 | ZX-45 | ZX-45 | ZX-45 | ||
| Dia. of poker | 35mm | 35mm | 35mm | 45mm | 45mm | 45mm | ||
| Length | 1.5M | 2.0M | 3.0M | 1.5M | 2.0M | 3.0M | ||
| Weight | 3.92kg | 4.7kg | 6.26kg | 5.5kg | 6.3kg | 7.1kg | ||
| Packing Size(5pcs/carton) cm | 155×21.5×5.5 | 205×21×5.5 | 65×65×5.5 | 155×28×5.5 | 205×28×5.5 | 65×65×5.5 | ||
