• Chinese-Style type
• Dynapac type
• Japanese type

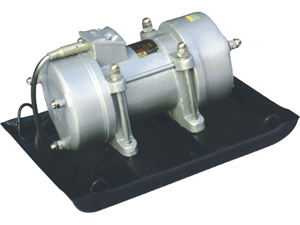

• Frame Type
• Vibrator with Poker and Flexible Tube
• Vibrator Working on the Construction Site
•
•

The electric concrete vibrator is designed for use with the vibrating poker. It is created on the basis of pendulum theory. The 2840RPM drive unit is utilized to transmit vibrating torque to the poker via the flexible tube. The drive can be plugged to different types of power supply voltages including 380V, 220V, and 110V.

Specifications

Item	Concrete Vibrator Motor
Type	Japanese type/Dynapac type		Frame Type
Model	ZNS50	ZNS70	ZN50FG	ZN70FG
Power (HP)	1.5	2.0	1.5	2.0
Voltage (V)	220/110V	220/110V	220/110V	220/110V
Frequency (HZ)	50	50	50	50
Current (А)	7.8	9.4	7.8	9.4
Working Speed(RPM)	2840	2840	2840	2840
Package Size(cm)	44×25×33	47×25×33	42.5×25×27.7	42.5×25×27.7
Weight (kg)	20	22	17	18

Item	Concrete Vibrator motor
Type	Chinese-Style Type
Model	ZN50	ZN70	ZN90
Power (HP)	1.5	2	3
Voltage (V)	380	380	380
Frequency (HZ)	50	50	50
Current (А)		3.33	4.7
Working Speed(RPM)	2840	2840	2840
Package Size(cm)	44×25×33	47×25×33	47×25×33
Weight (kg)	17	19	22
